ZumLink™ IQ Edge Intelligent Radio
Integrated Edge Connectivity and Computing Platform
FreeWave’s ZumLink IQ offers the ultimate in ease of operationalization for IIoT gains, giving you IQ compute power, storage, and wireless communications links all in a single, hardened hardware product.
With ZumLink IQ, you can run edge applications and create a wireless network using the unlicensed 900 MHz spectrum and Frequency Hopping Spread Spectrum (FHSS) technology: an inherently secure, cost-effective long-range alternative to Bluetooth, Wi-Fi, or LTE. Our ruggedized ZumLink radio supports high speed data rates with throughput from 80 kbps to 4 Mbps, with RF enhancement via FreeWave’s Network Accelerators.
The addition of FreeWave’s IQ Application Environment onboard makes it ready to run any number of industrial applications that put sensor queries, analytics, and intelligence at the network edge.
Key Features
IQ Onboard
Linux-based platform to deploy and run industrial applications. ZumLink IQ comes standard with the IQ Developer Edition with packages pre-loaded for Python, Node-RED, and Node.js. More Editions with 3rd party software coming soon.
Leverages FreeWave’s Network Accelerators
Packet Compression, packet aggregation, forward error correction, and adaptive spectrum learning to maximize network efficiency
Uses Unlicensed 900 MHz Spectrum
Cost-effective, easy to deploy
High Speed Data Rates
Five RF link rates supporting from 80 kbps to 4 Mbps
Long Range
Up to 97 km (60 miles) with clear line of sight
Secure
Frequency Hopping Spread Spectrum (FHSS) technology; SSH, SNMP, 128- and 256-bit AES counter mode encryption options
Low Power
355 mA @ 12V in transmit; 145 mA @ 12V in receive
Safe for Hazardous Locations
Class I, Division 2 certified
Industrial Grade
Operating in temperatures from -40°C to +75°C

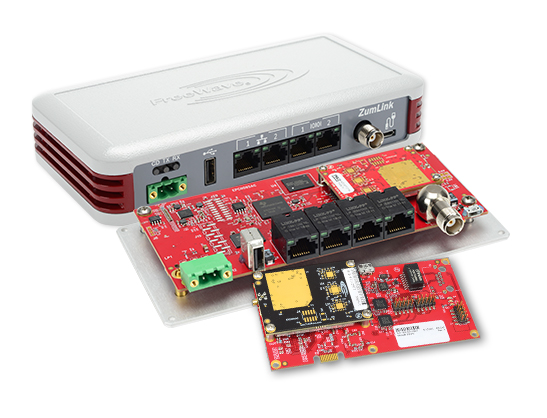

Models
Z9-PE2
Enclosed Unit, 902 to 928 MHz, 2 Ethernet Ports
Z9-P2
Board Level Unit, 902 to 928 MHz, 2 Ethernet Ports
Z9-PE
Enclosed Unit, 902 to 928 MHz
Z9-PE-DEVKIT
Includes 2 Z9-PE Units and Accessories
Z9-P
Board Level Unit, 902 to 928 MHz
Z9-PC
Board Level Unit, 902 to 928 MHz
Z9-PC-CC
Board Level Unit, 902 to 928 MHz, Conformal Coating
Z9-PC-DEVKIT
Includes Two Z9-PC Units and Accessories
Z9-PC-SR001
Board Level Unit with RJ45, 902 to 928 MHz
Z9-PC-SR001-CC
Board Level Unit with RJ45, 902 to 928 MHz, Conformal Coating
Z9-C
Board Level Unit, RS232, 902 to 928 MHz
Z9-T
Board Level Unit, TTL, 902 to 928 MHz
Pre-Integrated Editions
FreeWave also offers ZumIQ with additional 3rd party software pre-installed, giving you even greater out-of-the-box IQ functionality in a hardware product made for industrial demands.
