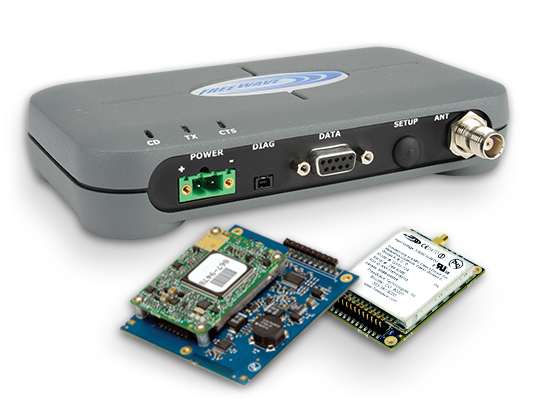

GX and GXM Series

Industrial Radios for the Globally-Available 2.4 GHz Spectrum

If your operations take you to Europe or other overseas markets, FreeWave’s GX and GXM Series of 2.4 GHz industrial radios deliver performance, reliability, and quality in a globally-available spectrum.

Offered as a board-level product, within a rugged enclosure, or as a drop-in replacement for the MM2 OEM, GX and GXM Series radios provide tremendous flexibility for use in applications around the world — all with full ETSI, FCC, IC, RoHS, and UL-approved Class I, Division 2 certificates.

How to Buy

gx and gxm series product line


Key Features

  • Versatile

    Gateway, Endpoint, Repeater, or simultaneous Endpoint and Repeater function in a single radio

  • Long Range

    Up to 32 km (20 miles) with clear line of sight with ability to extend via Repeaters

  • Low Power

    Ideal for solar, battery, and DC applications

  • Secure

    Frequency Hopping Spread Spectrum (FHSS) technology prevents detection and unauthorized access

  • Error-Free Communications

    32-bit CRC with automatic retransmissions

  • Noise Immunity

    Superior performance in noise-congested environments

  • Industrial Grade

    Class I, Division 2 certified; operating in temperatures -40°C to +85°C

  • Available Options

    TDMA, Super Epoch TDMA, 128 and 256-bit AES encryption



Manuals

GX Series User Manual

GXM Series User Manual

Models

GX-CE

Rugged Enclosure, UL Approved, C1D2

Download Datasheet

GX-C

Board Level Unit, UL Approved, C1D2

Download Datasheet

GX-T

Board Level Unit, TTL, UL Approved, C1D2

Download Datasheet

GXM-T14

Board Level Unit, 14-pin Connector, MMCX, C1D2

Download Datasheet

GXM-T14-SR300

Board Level Unit, 14-Pin Connector, TTL, MMCX, C1D2

Download Datasheet

GXM-T24

Board Level Unit, 24-Pin Connector, MMCX, C1D2

Download Datasheet

GXM-T24-SR100

Board Level Unit, 24-Pin Connector, TTL, AES-128, MMCX, C1D2

Download Datasheet

GXM-T24-SR101

Board Level Unit, 24-Pin Connector, TTL, AES-256, MMCX, C1D2

Download Datasheet

GXM-MR-R

Board Level Unit, RS232, C1D2

Download Datasheet

GXM-MR-T

Board Level Unit, TTL, C1D2

Download Datasheet



Is the GX/GXM Series right for my application?

We’ll help you decide. Tell us your operational requirements so that we can recommend your best-fit solution.

Speak to FreeWave Today
